142-0701-871
Manufacturer:
Cinch Connectivity Solutions
Mfr.Part #:
142-0701-871
Datasheet:
Description:

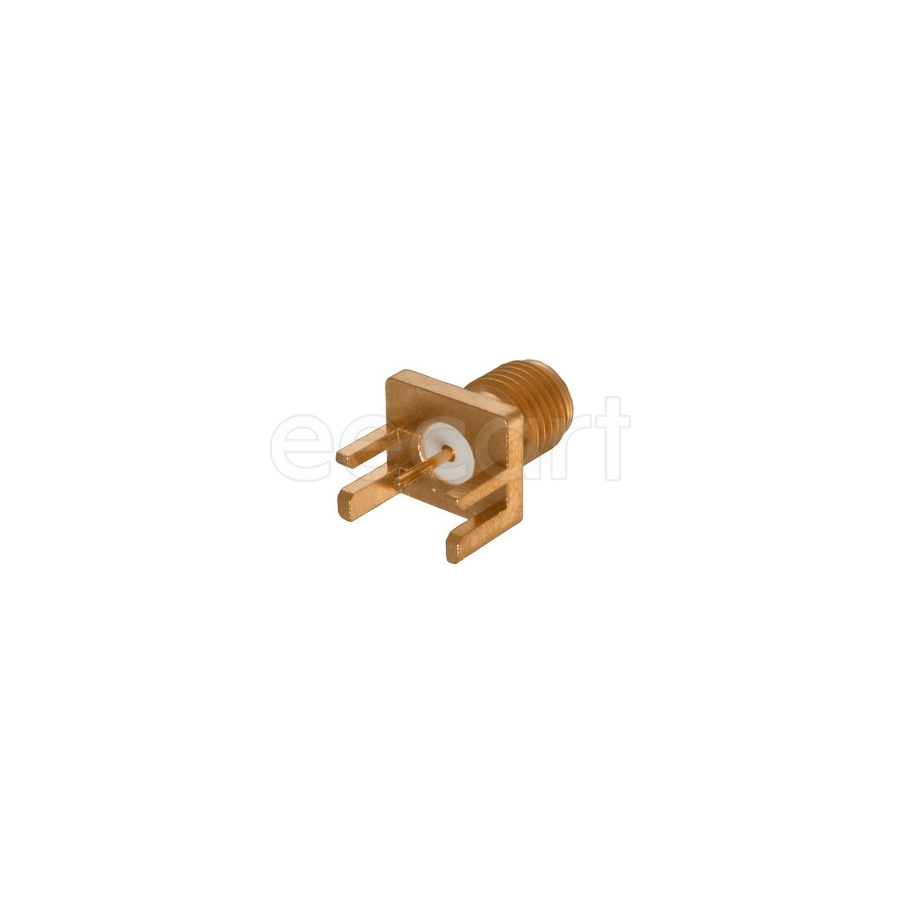

RF / Coaxial Connectors Through Hole SMA, Socket 50 Ω
| Parameter | Value |
|---|---|
| Length | 9.52 mm |
| Termination | Solder |
| Max Operating Temperature | 165 °C |
| Min Operating Temperature | -65 °C |
| Material | Brass |
| Packaging | Bulk |
| Voltage Rating | 335 V |
| Depth | 17.45 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Dielectric Material | PTFE |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Contact Material(Contact Finish) | Copper |
| Frequency | 18 GHz |
| Orientation | Straight |
| Gender | Female |
| Body Material | Brass |
| Connector Type | SMA, Socket |
| Max Frequency | 18 GHz |
| Insulation Material | PTFE |
| Housing Material | Brass |
| Fastening Type | Threaded |
| Housing Color | Gold |
| Body Plating | Gold |
| RF Series | SMA |
| Contact Termination | Solder |
| Shield Termination | Solder |
